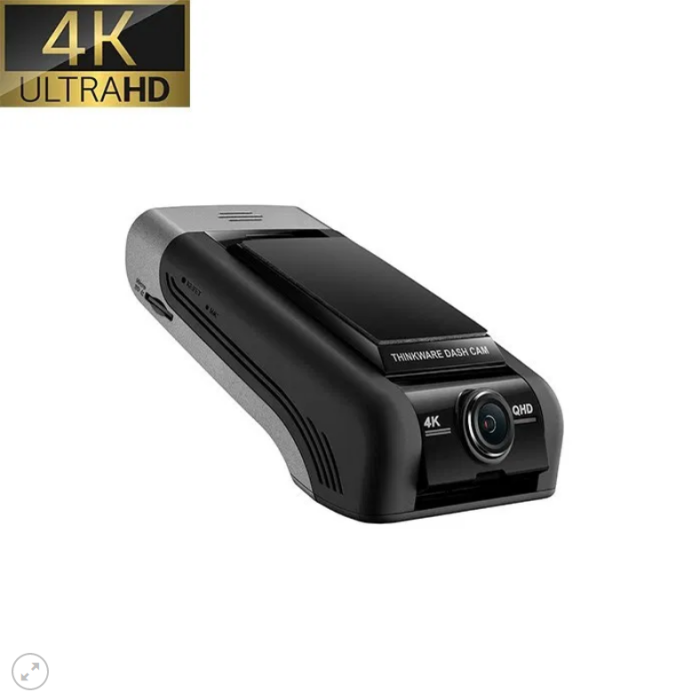

The U1000 is Thinkware’s newest flagship model that delivers sharp native 4K video quality and boasts a comprehensive driver assistance warning system to help keep drivers safe on the road. The U1000 can be accessorized with a 2K QHD rear view camera and hardwiring cable for complete, best-in-class 24/7 all-round protection.
Take Energy Saving 2.0 Parking Mode* to the next level with the optional Radar Module and iVolt Mini External Battery.
Also available is the U1000 Front + Rear Dash Cam Bundle with Hardwiring Cable and CPL Filter included at a special bundle price.
Connect this device to your iOS or Android smartphone via Wi-Fi by heading to the App Store or Google Play store and downloading the app.
* Requires Hardwiring Cable or OBD II Power Cable and installation for Parking Surveillance mode (professional installation recommended)
** THINKWARE CLOUD uses your smartphone’s or mobile hotspot device’s internet connection to send and receive notifications. Carrier charges may apply.
*** Energy Saving Mode 2.0 will disable all THINKWARE CLOUD features.
2K QHD REAR VIEW RECORDING
Optional Rear View Camera captures video evidence of incidents that occur at the rear of the vehicle in 2K QHD @30fps.

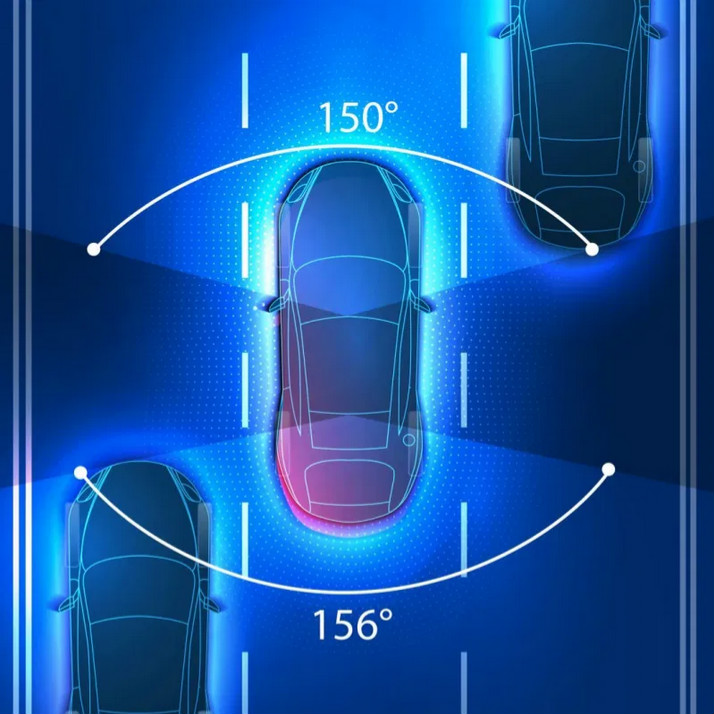

Wide Angle View
Front View Camera - 150º + Rear View Camera - 156º
Uncompromised video coverage with the wide viewing angles, so you never miss a moment.
Energy Saving 2.0
Compared to Energy Saving, Energy Saving 2.0 takes energy saving efficiency to the next level and increases up to 26 times the total duration of the dash cam's Parking Surveillance mode. The dash cam conserves energy by going on standby when entering Parking Surveillance mode and wakes up to record events triggered by impacts only.
* Optional Radar Module is sold separately.
* Parking Surveillance Mode requires Hardwiring Cable or OBD II Power Cable and installation (professional installation recommended).
* Energy Saving Mode 2.0 will disable all THINKWARE CLOUD features.
Radar Module
When in Energy Saving Mode 2.0, the Radar Module allows the U1000 dash cam to extend its Parking Surveillance mode duration by reducing the power consumption. When a motion is detected by the Radar Module, the U1000 wakes up and gets ready to record. If an impact is detected, a 20 second video (10 seconds before and 10 seconds after the impact) is saved in a dedicated folder on the MicroSD card. When no impacts are detected, the U1000 does not save the footage and resumes Energy Saving Mode 2.0.
* Optional Radar Module is sold separately
* Energey Saving Mode 2.0 will disable all THINKWARE CLOUD features.
* Radar motion detection requires optional Radar Module, and only enabled in Energy Saving Mode 2.0.
* Sedan or greater sized vehicle can be detected. People passing by will not be detected.
* Due to nature of Ultra-high Frequency radiation, the distance and degree of detection can be different.
* Not every object is guaranteed to be detected.
* Metal object can cause malfunction of the radar detection.
* Read user manual before using radar module
What's in the Box
- Dash Cam
- 12V Power Cable
- MicroSD Card
- USB MicroSD Card Reader
- Windshield Mount
- Spare 3M Mounting Tape
- Adhesive Cable Clips
- Quick Start Guide
Specifications
- Resolution :
Front – 4K UHD (3840 X 2160) @30fps or 2K QHD (2560 X 1440) @60fps
Rear – 2K QHD (2560 X 1440) @30fps [Optional] - Camera :
Front – 8.42MP Sony STARVIS
Rear – 5.14MP Sony STARVIS [Optional] - Frame Rate: 30 fps
- Viewing Angle: 150° (Diagonal)
- Dimensions(WxDxH) : 65 x 110 x 36 mm (2.5 x 4.3 X 1.4 inch)
- Weight :149g (0.329 lb)
- Storage Temperature : -20°~ 70°C (-4°~ 158°F)
- Operating Temperature : -10°~ 60°C (14°~ 140°F)
- Capacity : MicroSD card 32/64/128GB (UHS-I)
- Input Power : DC 12/24V, Built-in Super Capacitor
- GPS : Built-in GPS Antenna
